Vertical Edger
At Rico Machine Tools Vertical Edgers are available with 2 saws or 3 saws. In the 2 saw format both saw collars shift independently. In the 3 saw format the bottom saw and the middle saw shift independently.
- Product Description
- Features / Specification
- Gallery
- Quick Inquiry
Product Description

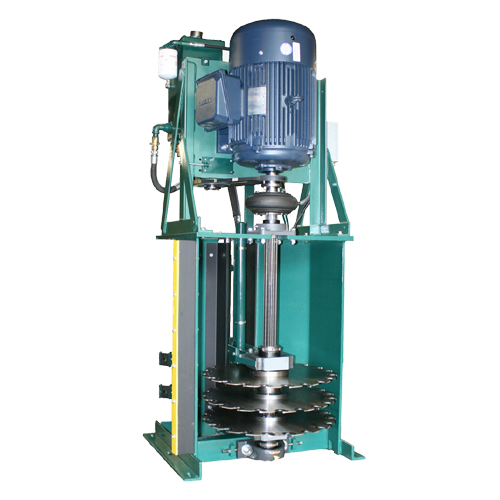

At Rico Machine Tools Vertical Edgers are available with 2 saws or 3 saws. In the 2 saw format both saw collars shift independently. In the 3 saw format the bottom saw and the middle saw shift independently. The top saw is attached to the middle saw by a fixed width spacer. The fixed width spacer can be constructed to yield any dimension. Rico Machine Tools' vertical edgers are available with an electric motor directly driving the mandrel of the vertical edger or with a belt drive from the mandrel of the sawmill to a gearbox on the vertical edger.
The float shaft, or shifting rod, on the back of the vertical edger is 2 3/16 inches diameter. The saw collars on all Rico Machine Tools vertical edgers are shifted by hydraulic cylinders. Rico Machine Tools utilizes 2 inches bore hydraulic cylinders to enable the saw shift.
Features / Specification
- Motor Size : 3PH. 1750 RPM, 40 HP – 125 HP
- Number Of Saws : 2-5
- Size of Saws : 20” – 24”
- Saw Mandrel – Round Key : 2 3/16” Bearings
- Saw Collars : Cast Iron
- Saw Collar Bearings : Factory made, grease fittings
- Maximum Depth of Cut : 20” SAWS - 6”
- Maximum Depth of Cut : 24” SAWS - 8”
- Maximum Cutting Width : 2 SAWS - - -26”
- Gear Box / V Belt Drive : Optional
- Overall Height : 79”
- Approximate Weight : 1100Kg
