Twin Channel
The twin channel offers solution to bar handling at cooling bed at high speeds. Twin channels are available for bar sizes up to 40mm in India and stock speeds as high as 30meters per second. This carries the bar in a closed channel until the material comes to a standstill position and discharges it to the bed below automatically.
- Product Description
- Features / Specification
- Gallery
- Quick Inquiry
Product Description

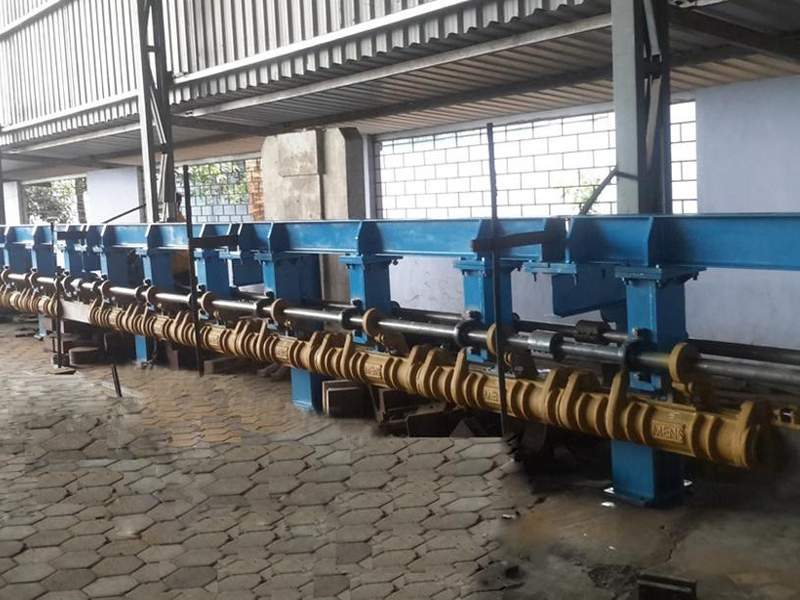

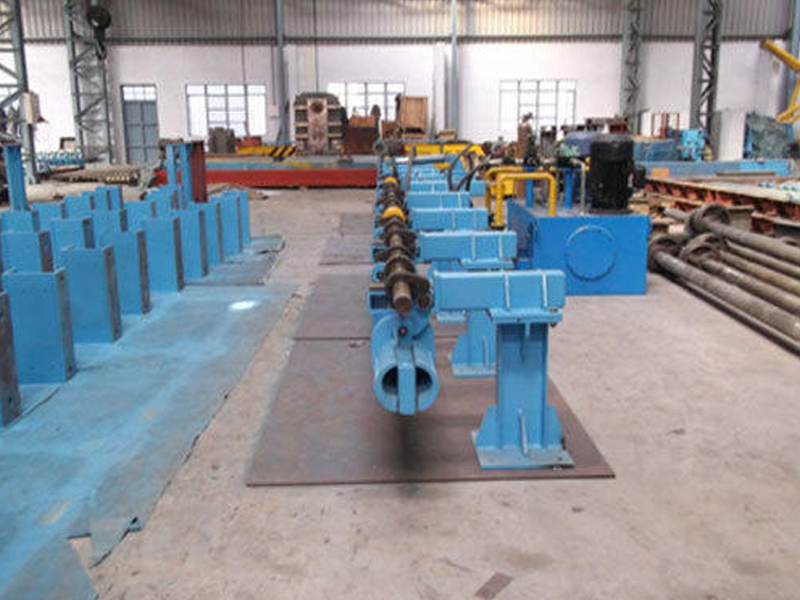

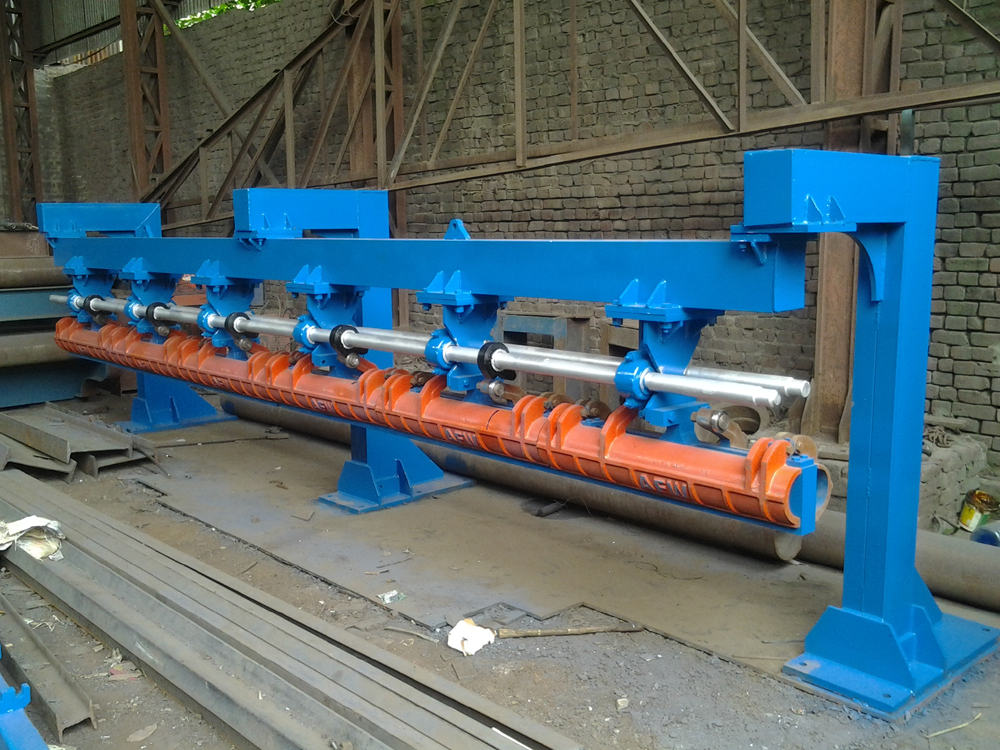

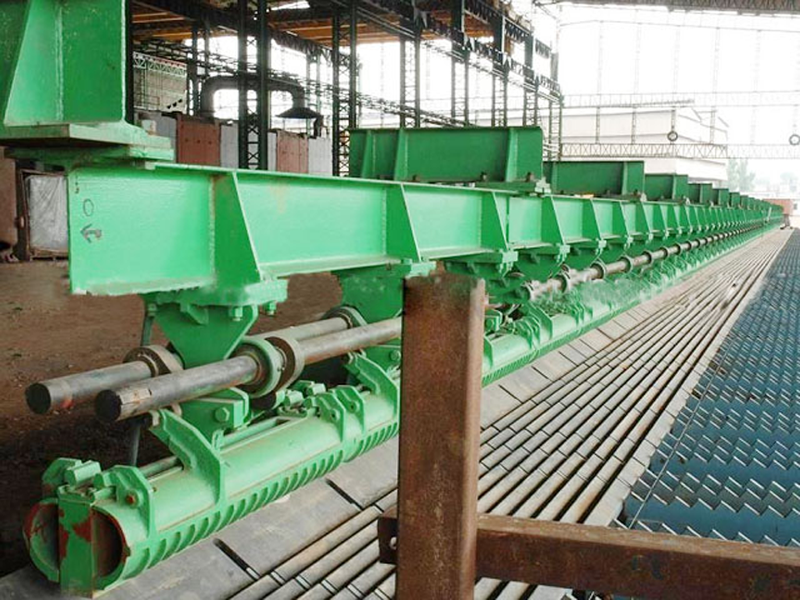

Our company is engaged in offering high grade Twin Channel Machine that is widely installed along the side of the entry of the cooling bed. The twin channels consist of alternatively opening flaps through a hydraulic cylinder and CAM system. In this, the bar enters the closed flap that opens when the full bar has been obtained. It has a free fall on the straightening pockets of the rake type cooling bed, which moves on the fixed & moving rakes to the mill run out table.
This is an excellent system as it carries the bar in a closed channel, minimizing the accident hazards. Specifically while carrying out high speed rolling the system is an absolute necessity.
Its design features makes it possible to work in conjunction with braking pinch rolls, minimizing the length of run-in. The operations of twin channel are automated and are guided by the discharge of the rods from dividing shear. An innovative idea for cast iron center boxes has drastically brought down maintenance time.
Features / Specification
There are ample of features and advantages that make our twin channels the most advanced one in the entire industry. Some of the striking features embarked with our manufactured TWIN Channels are as following:
- Twin water-cooled C-type channels with water cooling arrangement
- Supporting arrangement for the twin-channel and drive system
- Cam device for opening closing of the pipes
- Hydraulic Drive for operation of the cams
- Prevention from warping
- Highest level of safety
- Closed channel for transferring bars
- Can be attached to braking pinch rolls
