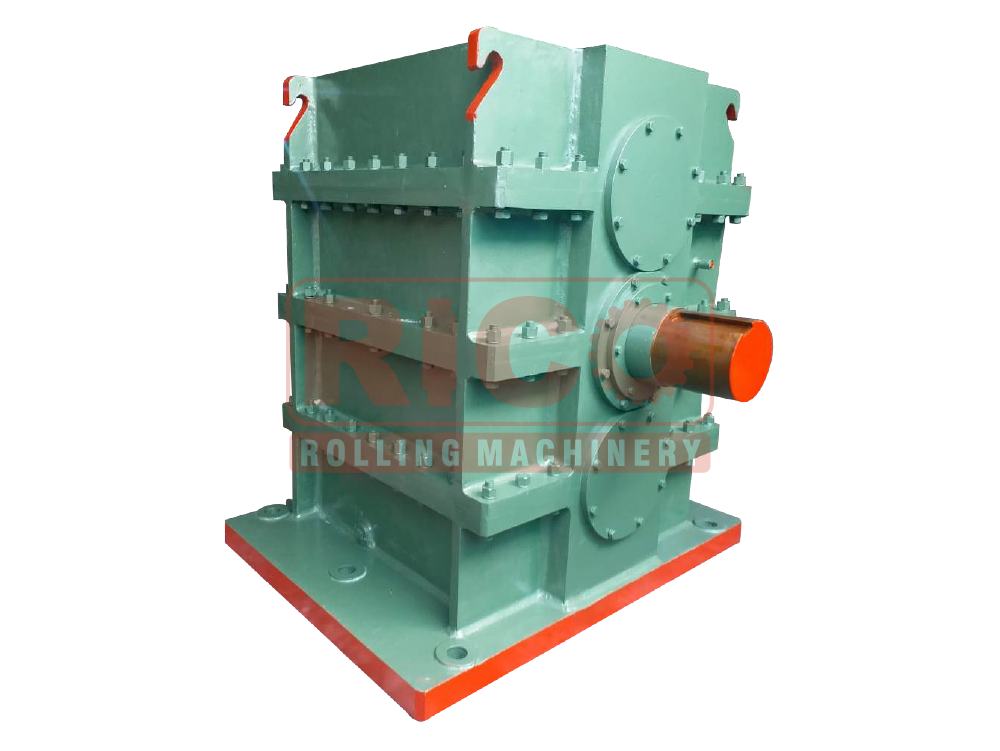

Pinion Gearbox
We are among the reputed organizations, highly engaged in manufacturing and supplying an optimum quality range of Pinion Gear Box. Our offered gear box is widely acknowledged by our clients for its excellent performance and low maintenance features. The provided product is precisely manufactured using the qualitative grade components and modern technology. This is available in various technical specifications and can be availed by our clients at most competitive price.
- Product Description
- Features / Specification
- Gallery
- Quick Inquiry
Product Description
Pinion Stand is fabricated with the purpose to reduce down the input speed to a slower output speed. It is kind of wheel work consisting of a connected set of rotating gears which allows force to transmit or change the motion or torque. The best part about it is that, at the time of manufacturing these Pinion Stand, Rico Machine Tools can consider client's demands as well, hence it can be customized in double or triple output shafts as required by the client. Our Pinion Stand have Gear type: Spur, Single & Double Helical Gears upto 2500mm Dia, it's normal input load range is from 200 H.P. upto 2000 h.p. drives and ideal size range should be between 150mm pcd upto 750mm pcd.
In order to meet the diverse functional needs of clients, generally these stands are made of superior grade hardened raw material, which ensures durability and reliability. These superior quality heavy duty pinion stand with increased power density, are highly useful for designing heavy loads in Rolling Mill Plants, Sugar Mills, Cement Plants, Mines and more.
Features / Specification
- Precision engineered range of pinion gear boxes
- Gearboxes designed to achieve reduction in input speed to slower output speed
- Gearboxes featuring connected set of rotating gears that allow force to be transmitted or motion or torque to be changed
- We can deliver double/triple output shafts as demanded
- Heavy duty and sturdy finish designs that allows bearing overload conditions
- Stress relieved and aligned casing / housing / structure of Gear Box
- All gears ultrasonic tested to ensure superior finish
- All pitches of gears precisely checked
- Casing / housing / structure of the Gear Box is horizontal split type
- Complete structure of Gear Box is MIG Welded which is tested by non-destructive weld testing
